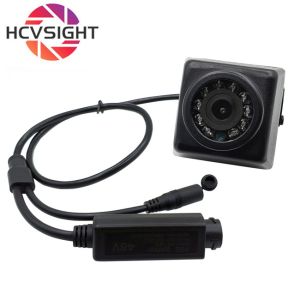

5MP IP66 Waterproof IR Night Vision PoE Security Camera For Outdoor Security
This 5MP PoE infrared night vision IP camera uses a 1/2.8-inch CMOS sensor with a resolution of 2592×1944 and supports H.265 compression, making it an industrial-grade PoE camera. Supporting ONVI and P2P protocols, it is compatible with most NVRs, VMS platforms, and cloud security solutions. Designed for professional security applications where image clarity, deployment efficiency, and long-term stability are critical, it provides clear, real-time monitoring for locations such as warehouses, parking lots, factories, construction sites, retail stores, logistics centers, and perimeter surveillance.
Key Features
5MP Ultra-HD Pixels: This device utilizes a high-sensitivity 1/2.8-inch 5MP CMOS image sensor, providing a resolution of 2592×1944. This ensures superior performance in license plate recognition, vehicle identification, access control, and wide-area surveillance.
Power over Ethernet (PoE) for Cost-Effective Installation: Employing 48V PoE technology, power and data can be transmitted via a single network cable.
IP66 Waterproof for Harsh Outdoor Environments: This IP66 waterproof camera features an all-metal casing, capable of withstanding rain, snow, dust, high temperatures, and low temperatures.
Infrared Night Vision: Equipped with an 850nm infrared LED, this camera delivers low-noise black-and-white images.
H.265 Video Compression for Reduced Bandwidth and Storage: H.265 IP cameras can reduce storage footprint by up to 50% while maintaining high image quality. This makes it ideal for multi-channel NVR systems and long-term project storage needs.
Technical Specifications
| Sensor | 1/2.8"CMOS |
| pixel | 5MP |
| Resolution | 2592x1944@25fps |
| compressed format | H.265 |
| Lens | F.NO: 3mm, Focal length: 2.2 |
| FOV | 90° |
| consumption | 0.25W |
| Product dimensions | 48X48mm |
| Operating Temp | <70°C |
| interface | POE |
| Night vision | 10 IR 850nm LEDs |
| power supply | POE 48V |
| IP Rating | IP66 |
| Model | HC-P5MPYSCZ-48 |
| Support OS | WinXP/Mac OS/Linux/Win7/Win8/Win10/Android |
Customization Services
We offer comprehensive OEM/ODM customization services to meet specific requirements:
- Lens customization: focal length, field of view, distortion control
- Custom casing designs and mounting solutions
- Cable and interface customization.
- Resolution options from 1MP to 12MP
- Multiple camera types: USB, AHD, CVBS, wired, wireless
Applications
Warehouse monitoring systems
Factory production monitoring
Parking lot security
Retail store anti-theft solutions
Logistics center surveillance
School and campus monitoring
Construction site perimeter security
Residential community surveillance
FAQ
Q: Can I purchase samples?
A: Small batch samples of 1–50pcs are supported.
Q: What types of cameras do you manufacture?
A: We specialize in manufacturing high-performance USB/IP/analog cameras and camera modules for machine vision, including:
Embedded cameras for face/object/barcode recognition
Industrial cameras for automated inspection and measurement
Security vision cameras for surveillance and monitoring.
Q: How is the quality control?
A: All cameras undergo rigorous testing (EIS, low-light performance, durability) and comply with CE/FCC/RoHS.
Q: What is the lead time?
A:In-stock items: 3-7 days. Custom orders: 2-4 weeks (depending on specifications).
