3MP Mini WiFi Camera Module ONVIF For Remote Monitoring And Security Surveillance

Product Categories
Shenzhen Huachuang Micro Vision Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

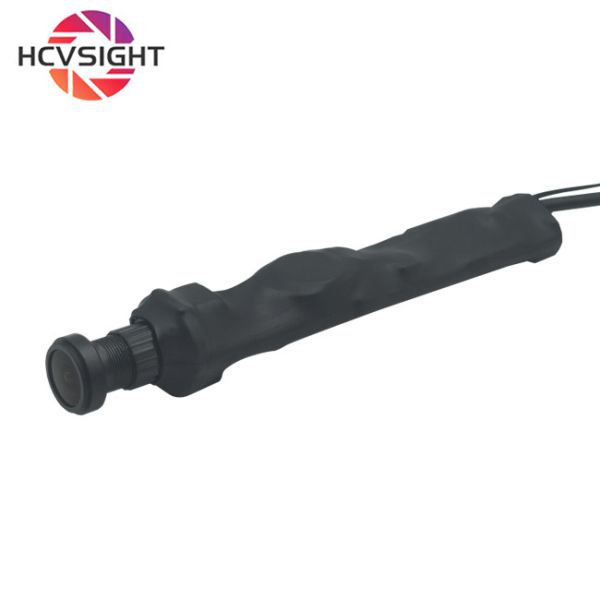

3MP Mini WiFi Camera Module ONVIF For Remote Monitoring And Security Surveillance

Brand Name : HCVsight

Model Number : HC-W3MPXJT

Place of Origin : Shenzhen China

MOQ : 50 pieces

Price : US$43.99/50~199 pieces US$41.79/200~499 pieces US$37.69/500~999 pieces

Payment Terms : T/T

Supply Ability : 100000/ pieces/month

Delivery Time : 2-3weeks

Packaging Details : Anti-static bag in Paper box（110mmx93mm41mm）

Pixel : 3MP

color : black

Product size : 14mmx70mm

Lens Angle : 160°（customizable）

Frequency Operating Voltage : 12v

Connection Mode : WiFi

Microphone : Support 2-way Audio

APP : V380 Pro App

Technology : P2p/onvif

Contact Now

3MP Mini WiFi Camera Module ONVIF For Remote Monitoring And Security Surveillance
This 3-megapixel mini bullet-shaped network camera supports 1080p HD video, H.265 compression, and the ONVIF protocol. It supports remote monitoring, is easy to install, and features TF card storage and two-way audio. Designed for system integrators, security installers, and commercial users, it meets their needs for stable performance, ease of integration, and long-term supply. Suitable for home security, retail stores, offices, small businesses, warehouse monitoring, and remote property monitoring.
Product advantages

▶ 3MP High-Definition Resolution for Clarity: This 3MP mini bullet-shaped WiFi camera captures crisp video for face recognition, license plate recognition, and small object monitoring.

▶ Advanced H.265 Video Compression: H.265 reduces bandwidth consumption and storage costs by up to 50%, making this camera ideal for large-scale deployments in multi-store retail, corporate offices, or property management projects.

▶ Stable 2.4GHz WiFi Connection: Built-in 2.4GHz WiFi provides stable remote monitoring without additional cabling, ideal for small business owners and installers seeking flexible deployment.

▶ Two-Way Voice Communication: Integrated microphone and speaker support two-way voice communication.

▶ TF Card and Cloud Storage Options: Supports up to 128GB TF cards and optional cloud storage.

Technical Specifications
Sensor 1/2.9"
Pixel 3MP
Compression Format H.264/H.265
Frame Rate 1920×1080@25fps
Audio Support 2-way Audio
Working Voltage DC 12V
Product Size 14mm×70mm
Working Temperature <70°C
Power Consumption 0.25W
Model HC-W3MPXJT
Storage Support Cloud Storage/TF Card( Max 128GB)
Type WIFI Network Camera
Lens Specifications F.NO: 3.0mm
Focal length: 2.2
Distortion: <-1.0%
Component: 4E+IR
FOV 160°
Chip Type CMOS
Professional Customization Services
We offer comprehensive OEM/ODM customization services to meet unique visual requirements:
  • Lens customization: Specific focal length, field of view angle, distortion control
  • Customized casing: Dedicated casing, bracket, or fixing method based on device structure
  • Cable and interface: Custom cable length and interface types.
  • Camera type customization: USB, AHD, CVBS, wired network, wireless WiFi cameras
Application Fields

Machine Vision & AI Systems:Ideal for barcode recognition, object detection, robotics platforms, and small AI boxes.

Kiosk & Self-Service Terminals:Used in ATM machines, smart access control, vending machines, ticketing systems.

Medical equipment and hospital systems

Industrial automation and robotics

Security surveillance systems

Flame monitoring in power plants

Law enforcement equipment

FAQ

Q: Can I purchase samples?

A: Small batch samples of 1–50pcs are supported.

Q: Does this camera run on Linux without installation?

A: Yes. It is fully compliant with UVC standards and plug-and-play.

Q: Can I customize the lens, field of view, or cable?

A: Yes. Lenses with different fields of view and cable lengths can be customized.

Q: What is the lead time?

A: In-stock items: 3-7 days. Custom orders: 2-4 weeks (depending on specifications).

Q: What types of cameras do you manufacture?

A: We specialize in manufacturing high-performance USB/IP/analog cameras and camera modules for machine vision, including:

- Embedded cameras for face/object/barcode recognition

- Industrial cameras for automated inspection and measurement

- Security vision cameras for surveillance and monitoring
Q: How is the quality control?

A: All cameras undergo rigorous testing (EIS, low-light performance, durability) and comply with CE/FCC/RoHS.

3MP Mini WiFi Camera Module ONVIF For Remote Monitoring And Security Surveillance
3MP Mini WiFi Camera Module ONVIF For Remote Monitoring And Security Surveillance
Lens specification sheet:Small lens.pdf
About our more products:Huachuang Finished Product List.xls
